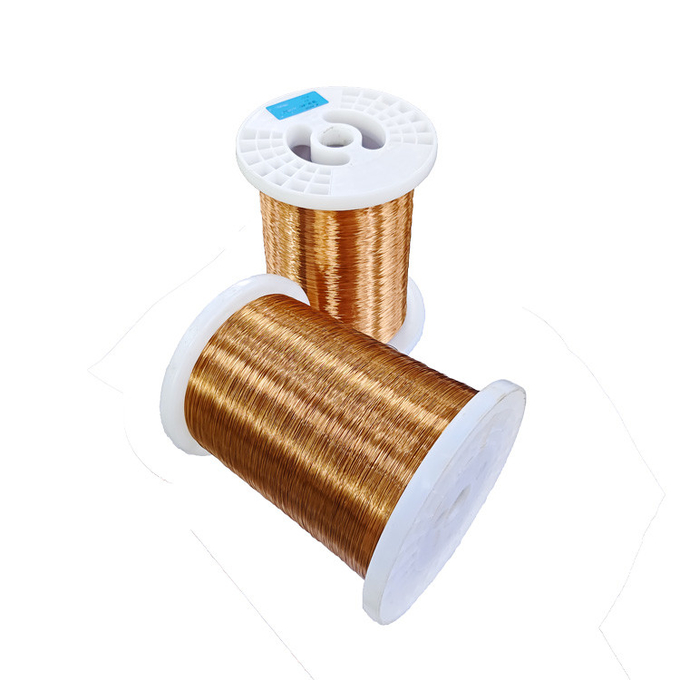

0.04mm - 1.00mm Overcoat Polyamide Enamelled Wire UEWH U1 Thermal Class 180

  • 1
  • 2

Brand Name : PEWSC

Model Number : 0.04mm-1.00mm

Certification : UL

Place of Origin : China

MOQ : The MOQ varies according to the size of the specification

Price : Copper price plus processing fee plus freight

Payment Terms : T/T 100% payment before shipment

Supply Ability : Delivery 10-15 days after next order

Delivery Time : 3-5 work days

Packaging Details : Box

Model : UEWH U1

Warranty : 3 years

Voltage Rating : 2800V The voltage resistance varies according to the thickness of the film and the size of the specification

Temperature : 180℃

Diameter : 0.04mm-1.00mm

Certifications : CE, RoHS, UL

Application : For high thermal solderable high applications

Color : Natural、Red、Green、Blue

Country Of Origin : China

Contact Now

0.04mm-1.00mm UEWH overcoat polyamide enamelled wire UEWH U1 Thermal class 180

UEWH is an enameled wire product that utilizes polyimide as an insulating material. Compared with the aforementioned UEHN series, UEWH has the following characteristics.

1. Extremely high heat resistance: UEWH is heat resistant up to 180°C, making it stable and reliable for long term operation in high temperature environments. This makes it ideal for motor and transformer applications where extreme temperature conditions need to be tolerated.

2. Excellent insulation strength: UEWH's polyimide insulation layer thickness can reach 0.1-0.5mm, which can provide very reliable insulation protection under high voltage. This is very advantageous for some special working conditions of electrical equipment.

0.04mm - 1.00mm Overcoat Polyamide Enamelled Wire UEWH U1 Thermal Class 1800.04mm - 1.00mm Overcoat Polyamide Enamelled Wire UEWH U1 Thermal Class 180

JIS---1種 Unit﹕mm

Diameter of Conduct		 Conductor Control
Benchmarks		 OD Control Benchmarks Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdown voltage
(v)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Resistance to abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase in Diameter
(mm)		 Max. Finished overall Diameter
(mm)		 JIS AWG Average Minimum
0.050±0.003 0.049 0.051 0.069 0.074 0.079 0.016 0.083 10240 1900 10 14 -- -- --
0.060±0.003 0.059 0.061 0.079 0.084 0.089 0.016 0.096 6966 1900 10 15 -- -- --
0.070±0.003 0.069 0.071 0.089 0.094 0.099 0.016 0.106 4990 1900 10 17 -- -- --
0.080±0.003 0.079 0.081 0.103 0.108 0.113 0.018 0.118 3778 2000 10 17 -- -- --
0.090±0.003 0.089 0.091 0.113 0.118 0.123 0.018 0.128 2959 2000 10 18 -- -- --
0.10±0.008 0.099 0.101 0.120 0.124 0.128 0.018 0.140 2647 2000 15 19 -- -- --
0.11±0.008 0.109 0.111 0.130 0.134 0.138 0.018 0.150 2153 2000 15 19 -- -- --
0.12±0.008 0.119 0.121 0.142 0.146 0.150 0.020 0.162 1786 2200 15 20 -- -- --
0.13±0.008 0.129 0.131 0.152 0.156 0.160 0.020 0.172 1505 2200 15 20 -- -- --
0.14±0.008 0.139 0.141 0.162 0.166 0.170 0.020 0.182 1286 2200 15 21 -- -- --
0.15±0.008 0.149 0.151 0.172 0.176 0.180 0.020 0.192 1111 2200 15 21 -- -- --
0.16±0.008 0.159 0.161 0.184 0.188 0.192 0.022 0.204 969.5 2200 15 22 -- -- --
0.17±0.008 0.169 0.171 0.194 0.198 0.202 0.022 0.214 853.5 2200 15 23 -- -- --
0.18±0.008 0.179 0.181 0.206 0.210 0.214 0.024 0.226 757.2 2400 15 23 -- -- --
0.19±0.008 0.189 0.191 0.216 0.220 0.224 0.024 0.236 676.2 2400 15 23 -- -- --
0.20±0.008 0.198 0.201 0.226 0.230 0.234 0.024 0.246 607.6 2400 15 24 -- -- --
0.21±0.008 0.208 0.212 0.236 0.240 0.244 0.024 0.256 549.0 2400 15 24 -- -- --
0.22±0.008 0.218 0.222 0.246 0.250 0.254 0.024 0.266 498.4 2400 15 24 -- -- --
0.23±0.008 0.228 0.232 0.258 0.262 0.266 0.026 0.278 454.5 2400 15 24 -- -- --
0.24±0.008 0.238 0.242 0.268 0.272 0.276 0.026 0.288 416.2 2400 15 24 -- -- --
0.25±0.008 0.248 0.252 0.278 0.282 0.286 0.026 0.298 382.5 2400 15 25 66 -- --
0.26±0.010 0.258 0.262 0.288 0.292 0.296 0.026 0.310 358.4 2400 15 25 66 357 306
0.27±0.010 0.268 0.272 0.298 0.302 0.306 0.026 0.320 331.4 2400 15 26 61 357 306
0.28±0.010 0.278 0.282 0.308 0.312 0.316 0.026 0.330 307.3 2400 15 26 61 367 306
0.29±0.010 0.288 0.292 0.318 0.322 0.326 0.026 0.340 285.7 2400 20 26 61 367 316
0.30±0.010 0.298 0.302 0.330 0.335 0.340 0.028 0.352 262.9 2800 20 26 61 398 337
0.32±0.010 0.317 0.322 0.350 0.355 0.360 0.028 0.372 230.0 2800 20 26 55 398 337
0.35±0.010 0.347 0.352 0.380 0.385 0.390 0.028 0.402 191.2 2800 20 27 50 408 347
0.37±0.010 0.367 0.372 0.400 0.405 0.410 0.028 0.424 170.6 2800 20 27 50 408 347
0.40±0.010 0.397 0.402 0.432 0.438 0.444 0.030 0.456 145.3 2800 20 27 76 449 377
0.45±0.010 0.446 0.452 0.484 0.490 0.496 0.032 0.508 114.2 2800 20 28 72 479 408
0.50±0.010 0.496 0.502 0.536 0.542 0.548 0.034 0.560 91.43 3050 20 28 67 520 449
0.55±0.020 0.546 0.552 0.586 0.593 0.600 0.034 0.620 78.15 3050 20 29 62 520 449
0.60±0.020 0.596 0.602 0.636 0.643 0.650 0.034 0.672 65.26 3050 20 29 62 530 459
0.65±0.020 0.646 0.653 0.689 0.697 0.705 0.036 0.724 55.31 3050 20 29 58 571 490
0.70±0.020 0.696 0.703 0.741 0.749 0.757 0.038 0.776 47.47 3050 20 30 53 612 520
0.75±0.020 0.746 0.753 0.793 0.801 0.809 0.040 0.830 41.19 3400 25 30 53 653 551
0.80±0.020 0.795 0.803 0.845 0.853 0.861 0.042 0.882 36.08 3400 25 30 66 683 581
0.85±0.020 0.845 0.853 0.897 0.905 0.913 0.044 0.934 31.87 3400 25 30 66 724 612
0.90±0.020 0.895 0.903 0.949 0.957 0.965 0.046 0.986 28.35 3400 25 31 62 765 653
0.95±0.020 0.945 0.953 1.001 1.009 1.017 0.048 1.038 25.38 3400 25 31 62 806 683
1.00±0.030 0.995 1.003 1.053 1.062 1.071 0.050 1.102 23.33 3400 25 32 58 847 714
1.10±0.030 1.094 1.103 1.157 1.166 1.175 0.052 1.204 19.17 4150 25 32 54 887 755
1.20±0.030 1.194 1.203 1.257 1.266 1.275 0.052 1.304 16.04 4150 25 32 54 897 755
1.30±0.030 1.294 1.303 1.359 1.368 1.377 0.054 1.408 13.61 4150 25 33 50 938 796
1.40±0.030 1.394 1.403 1.459 1.468 1.477 0.054 1.508 11.7 4150 25 33 46 949 806
1.50±0.030 1.494 1.503 1.561 1.571 1.581 0.056 1.612 10.16 4150 25 33 46 1000 836
1.60±0.030 1.593 1.603 1.661 1.671 1.681 0.056 1.712 8.906 4150 25 33 42 1000 847
1.70±0.030 1.693 1.703 1.763 1.773 1.783 0.058 1.814 7.871 4350 25 33 -- 1020 887
1.80±0.030 1.793 1.803 1.863 1.873 1.883 0.058 1.914 7.007 4350 25 34 -- 1020 887
1.90±0.030 1.893 1.903 1.965 1.975 1.985 0.060 2.018 6.278 4350 25 34 -- 1120 928
2.00±0.030 1.993 2.003 2.065 2.076 2.087 0.060 2.118 5.656 4350 30 34 -- 1120 938
2.10±0.030 2.092 2.104 2.167 2.178 2.189 0.062 2.220 5.123 4350 30 34 -- 1120 969
2.20±0.030 2.192 2.204 2.269 2.280 2.291 0.064 2.322 4.662 4350 30 35 -- 1220 1000
2.30±0.030 2.292 2.304 2.369 2.380 2.391 0.064 2.422 4.260 4350 30 35 -- 1220 1010
2.40±0.030 2.392 2.404 2.471 2.482 2.493 0.066 2.526 3.908 4350 30 35 -- 1220 1020
2.50±0.030 2.492 2.504 2.573 2.585 2.597 0.068 2.628 3.598 4350 30 35 -- 1330 1120
2.60±0.030 2.590 2.604 2.673 2.685 2.697 0.068 2.728 3.324 4350 30 35 -- 1330 1120
2.70±0.030 2.69 2.704 2.773 2.785 2.797 0.068 2.828 3.079 4350 30 35 -- -- --
2.80±0.030 2.79 2.804 2.873 2.885 2.897 0.068 2.928 2.861 4350 30 36 -- -- --
2.90±0.030 2.89 2.904 2.973 2.985 2.997 0.068 3.028 2.665 4350 30 36 -- -- --
3.00±0.030 2.990 3.004 3.073 3.085 3.097 0.068 3.128 2.489 4350 30 36 -- -- --
3.20±0.040 3.19 3.204 3.273 3.285 3.297 0.068 3.338 2.198 4350 30 36 -- -- --
