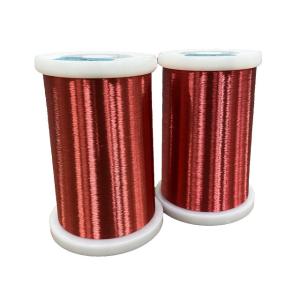

Red Color Enamelled Round Copper Wire 0.05mm-1.5mm Suitable For Communication Equipment

Pacific Electric Wire & Cable (Shenzhen) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Red Color Enamelled Round Copper Wire 0.05mm-1.5mm Suitable For Communication Equipment

  • 1
  • 2

Brand Name : PEWSC

Model Number : Red Color Enamelled Round Copper Wire

Certification : UL

Place of Origin : China

MOQ : The MOQ Varies According to the Size of the Specification

Price : Copper Price plus Processing Fee plus Freight

Payment Terms : T/T 100% Payment before Shipment

Supply Ability : Delivery 10-15 Days after Next Order

Delivery Time : 3-5 Work Days

Packaging Details : Box

Minimum Quantity : 300kg And Above

Shape : Round

Size Range : UEF1 Grade three

Insualtion Type : Copper

Temperature Grade : Spool

Hierarchy : Single、double、triple layer

Contact Now

1. Excellent heat resistance:
Heat-resistant temperature: UEWF can withstand heat-resistant temperatures up to 155°C. This makes it suitable for applications such as motors, transformers, etc., in high-temperature environments.
Thermal stability: In a high-temperature environment, UEWF's polyimide outer layer and modified polyester insulation work together to ensure that the wire can maintain stable performance under long-term high-temperature operation.

2. Excellent insulation properties:
Insulation thickness: The thickness of the modified polyester insulation layer of UEWF is generally 0.1-0.3mm, which can provide reliable insulation protection under high voltage conditions.
Electrical properties: The polyimide outer layer further enhances the dielectric strength and stability, ensuring electrical safety in high voltage and harsh environments.

3. Good mechanical strength:
Mechanical stress: Both the modified polyester insulation layer and the polyimide outer layer of UEWF have high mechanical strength, which can effectively resist the mechanical stress generated during the manufacturing process of the motor stator winding.
Abrasion resistance: The polyimide outer layer is extremely resistant to abrasion and maintains the integrity and performance of the wire under high levels of mechanical stress.

4. Excellent Chemical Resistance:
Corrosion resistance: UEWF's outer polyimide material is highly resistant to a wide range of chemicals and solvents, making it work stably for a long time in harsh industrial environments.
Chemical resistance: This property makes it suitable for chemical, petroleum, and other applications that require corrosion-resistant materials.

Red Color Enamelled Round Copper Wire 0.05mm-1.5mm Suitable For Communication Equipment

GB ---Grade3 Unit﹕mm
Diameter of
Conduct
Conductor
Tolerance
Conductor Control
Benchmarks
OD Control
Benchmarks
Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)
Min Elongation
(%)
Max.
Springiness
(°)
Insulation breakdown voltage
(v)
Lower
Limit
Upper
Limit
Lower
Limit
Upper
Limit
Min. Increase
in Diameter
Max. Finished
overall Diameter
0.071 ±0.003 0.070 0.072 0.09 0.095 0.018 0.097 4747 13 -- 1100
0.080 ±0.003 0.079 0.081 0.101 0.107 0.020 0.108 3703 14 100 1200
0.090 ±0.003 0.089 0.091 0.113 0.119 0.022 0.120 2900 15 94 1300
0.100 ±0.003 0.099 0.101 0.124 0.131 0.023 0.132 2333 16 90 1400
0.112 ±0.003 0.111 0.114 0.139 0.146 0.026 0.147 1848 17 88 3900
0.125 ±0.003 0.124 0.127 0.154 0.161 0.028 0.163 1475 17 84 4100
0.140 ±0.003 0.139 0.142 0.171 0.178 0.030 0.181 1170 18 79 4200
0.160 ±0.003 0.159 0.162 0.194 0.201 0.033 0.205 890.6 19 78 4400
0.180 ±0.003 0.179 0.182 0.218 0.225 0.036 0.229 700.7 20 75 4700
0.200 ±0.003 0.199 0.202 0.241 0.249 0.039 0.252 565.7 21 72 5100
0.224 ±0.003 0.223 0.226 0.269 0.277 0.043 0.280 449.5 21 68 5200
0.250 ±0.004 0.249 0.253 0.301 0.309 0.048 0.312 362.8 22 65 5500
0.280 ±0.004 0.279 0.283 0.333 0.341 0.050 0.345 288.2 22 61 5800
0.315 ±0.004 0.314 0.317 0.371 0.38 0.053 0.384 227.0 23 62 6100
0.355 ±0.004 0.354 0.357 0.415 0.423 0.057 0.428 178.2 23 59 6400
0.400 ±0.005 0.398 0.403 0.464 0.474 0.060 0.478 140.7 24 55 6600
0.450 ±0.005 0.448 0.453 0.518 0.528 0.064 0.533 110.9 25 53 6800
0.500 ±0.005 0.498 0.503 0.571 0.581 0.067 0.587 89.59 25 51 7000
0.560 ±0.006 0.557 0.563 0.635 0.645 0.071 0.653 71.53 26 48 7100
0.630 ±0.006 0.627 0.633 0.709 0.721 0.075 0.728 56.38 27 53 7100
0.710 ±0.007 0.707 0.714 0.795 0.807 0.080 0.814 44.42 28 50 7200
0.800 ±0.008 0.797 0.804 0.89 0.902 0.085 0.911 35.00 28 46 7400
0.900 ±0.009 0.897 0.904 0.995 1.007 0.090 1.018 27.65 29 51 7600
1.000 ±0.010 0.997 1.004 1.1 1.114 0.095 1.124 22.40 30 47 7600
1.120 ±0.011 1.116 1.124 1.223 1.237 0.098 1.248 17.85 30 34 7600
1.250 ±0.013 1.246 1.254 1.355 1.369 0.100 1.381 14.35 31 39 7600
1.400 ±0.014 1.396 1.406 1.509 1.523 0.103 1.535 11.43 32 36 7600
1.600 ±0.016 1.596 1.606 1.714 1.73 0.107 1.740 8.75 32 32 7600
1.800 ±0.018 1.796 1.806 1.917 1.933 0.110 1.944 6.91 32 7600
2.000 ±0.020 1.994 2.006 2.12 2.136 0.113 2.148 5.60 33 7600
2.240 ±0.022 2.234 2.246 2.363 2.381 0.116 2.392 4.46 33 7600
2.500 ±0.025 2.494 2.506 2.626 2.644 0.119 2.656 3.58 33 7600
2.800 ±0.028 2.794 2.808 2.932 2.95 0.123 2.961 2.86 34 3800
3.150 ±0.032 3.144 3.158 3.286 3.306 0.127 3.316 2.26 34 3800
